As organizations push toward AI-driven automation, immersive collaboration, and intelligent IoT integration, the demands on wireless infrastructure are growing exponentially. Cisco Meraki’s response is the introduction of two cutting-edge Wi-Fi 7 access points: the Meraki CW9176 and Meraki CW9178.
These APs aren’t just spec bumps from previous generations. These access points are here to support emerging digital workloads that require multi-gigabit throughput, ultra-low latency, and high client concurrency. Think of dense environments like college campuses with AR-enabled learning, hospitals supporting real-time telemetry, or enterprise HQs running simultaneous 4K video meetings and cloud-based collaboration tools.
Wi-Fi 7 support enables these access points to leverage wide 320 MHz channels and new technologies like 4K-QAM and MLO. Combined with Meraki’s cloud-managed architecture, these models simplify the deployment and scaling of high-performance wireless networks across hundreds or even thousands of access points. The Meraki CW9176 and Meraki CW9178 bring the future of wireless within reach today.
Wi-Fi 7 (802.11be) delivers powerful upgrades that directly translate to better user experience and operational efficiency for enterprises.
First, the wider 320 MHz channels available in the 6 GHz band more than double the data rate compared to Wi-Fi 6E. This means smoother real-time applications, faster file transfers, and reduced buffering even in congested environments. Additionally, 4K-QAM boosts peak throughput by 20–30% by encoding more bits per transmission symbol, which is critical for data-intensive applications like video rendering and high-speed backups.
Then comes Multilink Operation (MLO), a Wi-Fi 7 innovation that enables devices to simultaneously send and receive data across multiple bands (e.g., 5 GHz and 6 GHz). This provides better reliability, latency reduction, and optimized spectrum utilization, particularly valuable for AR/VR applications or healthcare telemetry where dropouts are unacceptable.
Both the Meraki CW9176 and Meraki CW9178 support Flexible Radio Assignment (FRA), intelligently adapting radio configurations based on client demand and interference levels. The Meraki CW9178, in particular, goes further with a quad-radio mode, giving administrators the flexibility to allocate multiple 5 GHz radios or create dedicated scanning channels for security and performance analytics.

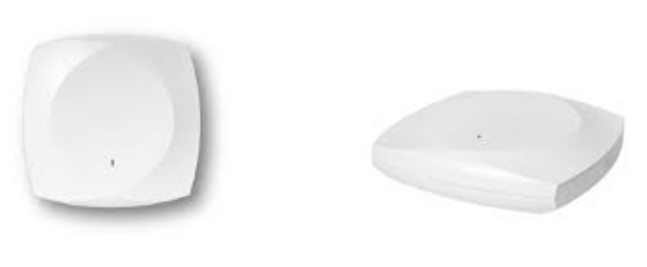

The Meraki CW9176 is engineered for adaptive wireless performance in diverse, high-demand environments. It supports tri-radio operation and is available in two form factors:
At the heart of the CW9176 is a 4×4 MU-MIMO configuration on all radios—2.4 GHz, 5 GHz, and 6 GHz—enabling simultaneous multi-user transmissions with reduced contention. PHY data rates can reach up to 23 Gbps in optimal conditions, supporting dozens of concurrent clients with ease.
The CW9176 is also designed for precision and automation. It features integrated UWB (Ultra-Wideband) for high-accuracy location tracking, BLE 5.3 for asset and device discovery, and GNSS/GPS for regulatory compliance and simplified deployment in distributed networks.
From an IoT and edge computing perspective, this access point stands out. It supports containerized application hosting, allowing IT teams to deploy microservices, such as occupancy sensors or building automation agents, directly on the access point. This removes the need for separate gateways or overlay networks.
Tied into the Meraki dashboard, the CW9176 provides full-stack telemetry, from client performance to RF health. With cloud-based configuration, firmware automation, and integrated troubleshooting tools, it’s a powerful tool for any IT team managing multi-site operations.
The Meraki CW9178 is designed for scale, performance, and resilience in the most demanding wireless environments. This is the access point you choose when consistent uptime, redundant connectivity, and maximum throughput are non-negotiable.
Equipped with quad-radio mode, the CW9178 includes four 4×4 radios: one each for 2.4 GHz and 6 GHz, and two separate 5 GHz radios. This enables dense client segmentation and support for concurrent high-bandwidth applications without interference or performance drops. When operating in quad-radio mode, the CW9178 can push up to 24 Gbps of aggregated PHY throughput—enough to support thousands of clients in environments like stadiums or convention centers.
Redundancy is baked into the hardware. Dual 10G multigigabit Ethernet ports offer both link and power failover, ensuring uninterrupted operations even if a cable or PoE injector fails. This makes the CW9178 a perfect fit for mission-critical networks where uptime is closely tied to revenue or safety.
Like its sibling, the CW9178 supports UWB, BLE, GNSS, and application containers. However, it goes further with enhanced intelligent capture, a Meraki feature that enables continuous packet inspection and event correlation that is essential for proactive anomaly detection in large enterprise environments.
With Meraki’s centralized dashboard, IT teams can monitor performance across multiple APs, generate historical reports, and quickly isolate issues using Meraki Health and Intelligent Capture, with no need to be physically present.
While both access points deliver top-tier Wi-Fi 7 performance, they’re built for different use cases and operational scales. The Meraki CW9176 focuses on flexibility, form factor options, and enterprise-ready features, while the Meraki CW9178 emphasizes maximum density support, throughput, and hardware-level redundancy.
Below is a detailed comparison:
| Feature | CW9176 | CW9178 |
| Radio Mode | Tri-radio | Tri-radio or Quad-radio |
| Max PHY Throughput | Up to 23 Gbps | Up to 24 Gbps (quad-radio mode) |
| Ethernet Ports | 1x 10G RJ45 | 2x 10G RJ45 |
| Redundancy (Power & Link) | No | Yes |
| Mounting Form Factors | CW9176I (omni), CW9176D1 (directional) | CW9178I (internal omni) |
| Application Hosting | Yes | Yes |
| Intelligent Capture | Yes | Yes (deeper anomaly detection) |
| Power Consumption (Max) | 39W | 47W |
| Deployment Focus | General enterprise, smart buildings | Stadiums, campuses, mission-critical HQ |
.
The Meraki CW9176 fits perfectly in modern office campuses, higher education institutions, healthcare clinics, and smart buildings. It’s particularly well-suited for IoT-heavy deployments thanks to its support for UWB, BLE, and application containers. Whether tracking medical assets in a hospital or enabling building automation in a corporate HQ, the CW9176 delivers both wireless performance and edge intelligence.
On the other hand, the Meraki CW9178 should be your go-to in high-density, mission-critical environments. Think sports arenas with 30,000+ attendees, convention centers supporting simultaneous livestreams, or multi-floor corporate HQs where downtime is not an option. Its dual 10G uplinks allow it to fully utilize multi-gig switches, and its quad-radio setup ensures smooth performance even during peak usage.
Each AP is backed by Meraki’s cloud-native interface, making deployment, monitoring, and firmware updates consistent across hundreds or thousands of devices.
Both the Meraki CW9176 and Meraki CW9178 go beyond performance and support operational sustainability and intelligent automation that reduces ongoing IT workload.
A standout feature is AP Power Save Mode, which dynamically reduces power draw during low-use periods like nights or weekends. Radios can power down selectively while maintaining responsiveness to reconnect when needed. This helps organizations meet sustainability goals, cut energy costs, and extend the lifecycle of supporting infrastructure.
The Meraki dashboard also eliminates the usual complexity of managing high-performance wireless deployments. Features like auto RF tuning, AI-driven anomaly detection, and Meraki Health provide real-time insights into signal quality, interference sources, and client connectivity. Administrators can apply group policies across hundreds of APs in seconds, which is ideal for organizations scaling their operations without scaling their IT teams.
Add in automated firmware management, integrated application lifecycle tools, and container-based extensions for IoT and security, and it’s easy to see how Meraki simplifies the job of managing an enterprise-grade wireless network.
To operate the Meraki CW9176 and Meraki CW9178, customers must subscribe to a Cisco Networking Subscription, available in two tiers: Essentials and Advantage.
This licensing model provides full access to Meraki’s software stack, including hardware/software support, security updates, dashboard access, and seamless integration with Cisco platforms like Catalyst Center, Cisco Spaces, Secure Connect, and ISE.
Subscriptions are pooled across devices, making it easier to manage renewals and budget planning. Administrators can co-term licenses, upgrade entitlements mid-cycle, and activate new devices without disrupting existing workflows. This flexibility is key for enterprise IT teams managing distributed locations or upgrading legacy networks in phases.
The Meraki CW9176 delivers versatile, high-performance Wi-Fi 7 for most enterprise use cases, including campuses, healthcare, and office buildings, with tri-radio flexibility, BLE/UWB integration, and strong IoT readiness.
Meanwhile, the Meraki CW9178 is built for scale. With quad-radio capability, 24 Gbps throughput, dual 10G uplinks, and hardware redundancy, it’s ideal for high-density, mission-critical environments like stadiums, enterprise headquarters, and smart city hubs.
Both models bring cloud-first simplicity, intelligent analytics, and future-proof wireless to your organization, ready to support AR/VR, edge computing, and thousands of devices at once.
